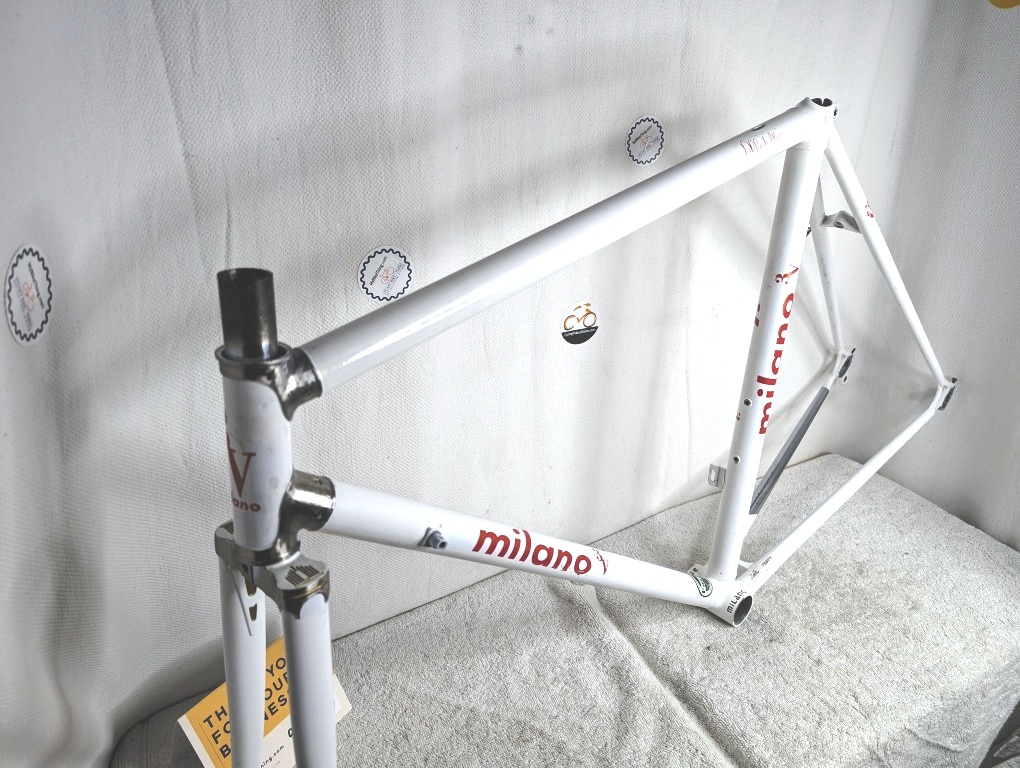

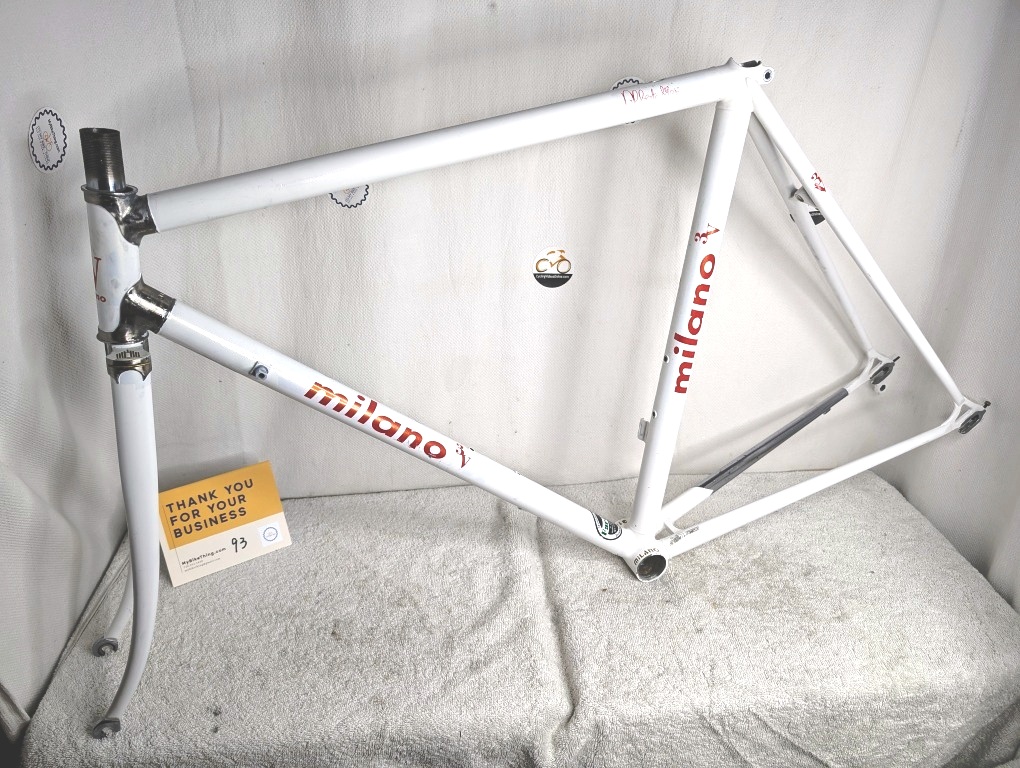

Masi Milano 3V 314 Volumetrica Classic Road Frame & Fork | 54cm Med | Pearl White

Description

⭐Condition

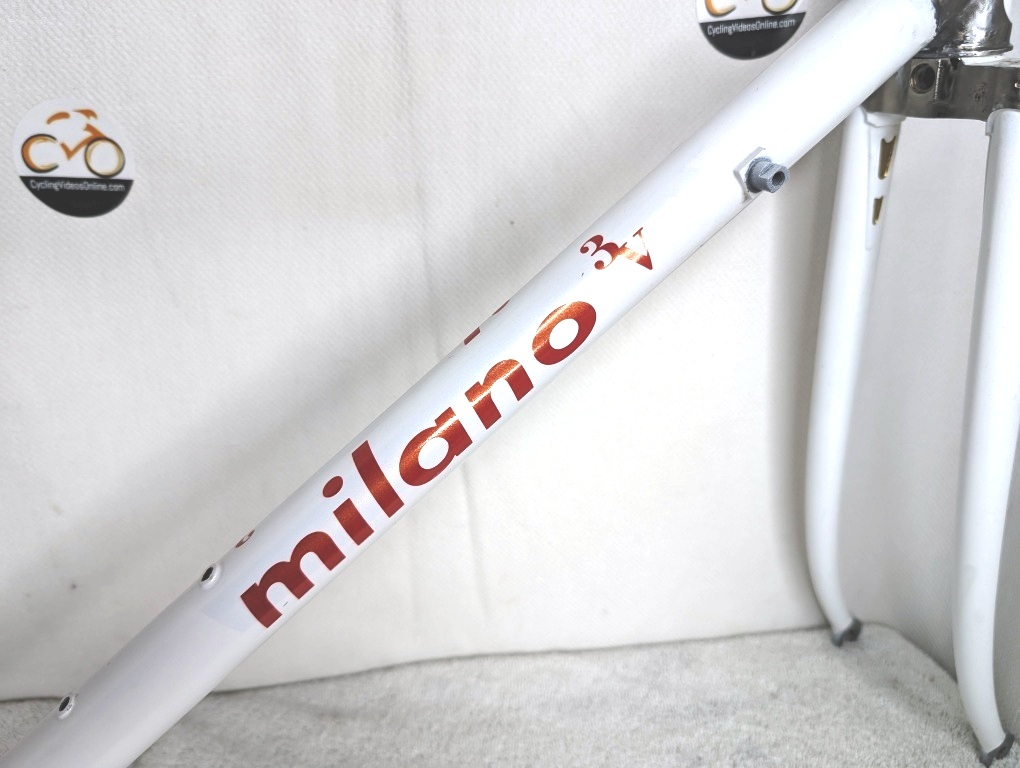

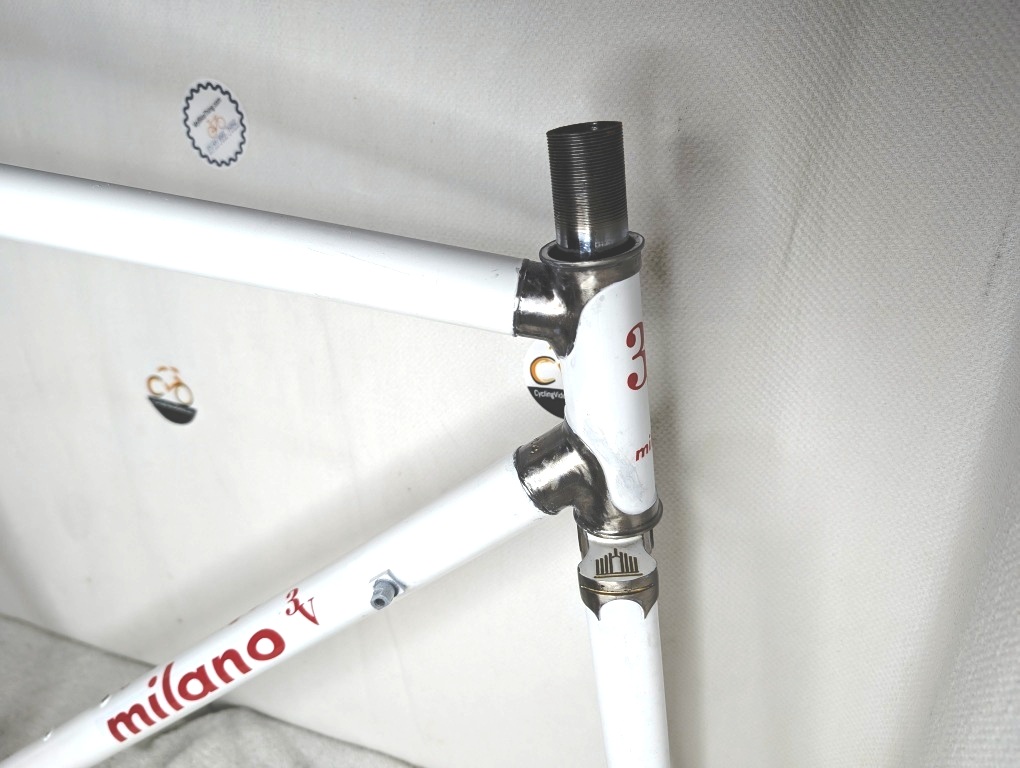

Exceptional condition following a meticulous restoration that showcases the elegance of this rare frame. The front lugs were professionally stripped and sanded to reveal the original chrome while other lugs were left untouched. The frame was color matched to preserve the original logos while removing blemishes from light riding. Some noticeable discoloration on the headtube from restoration.  The entire frame was coated with a protective finish.

📏Will this fit me?
Frame Size: 53cm – Medium

• Top Tube: 54cm (center-to-center)
• Seat Tube: 53cm (top-to-center)
• Down Tube: 62cm (center-to-center)

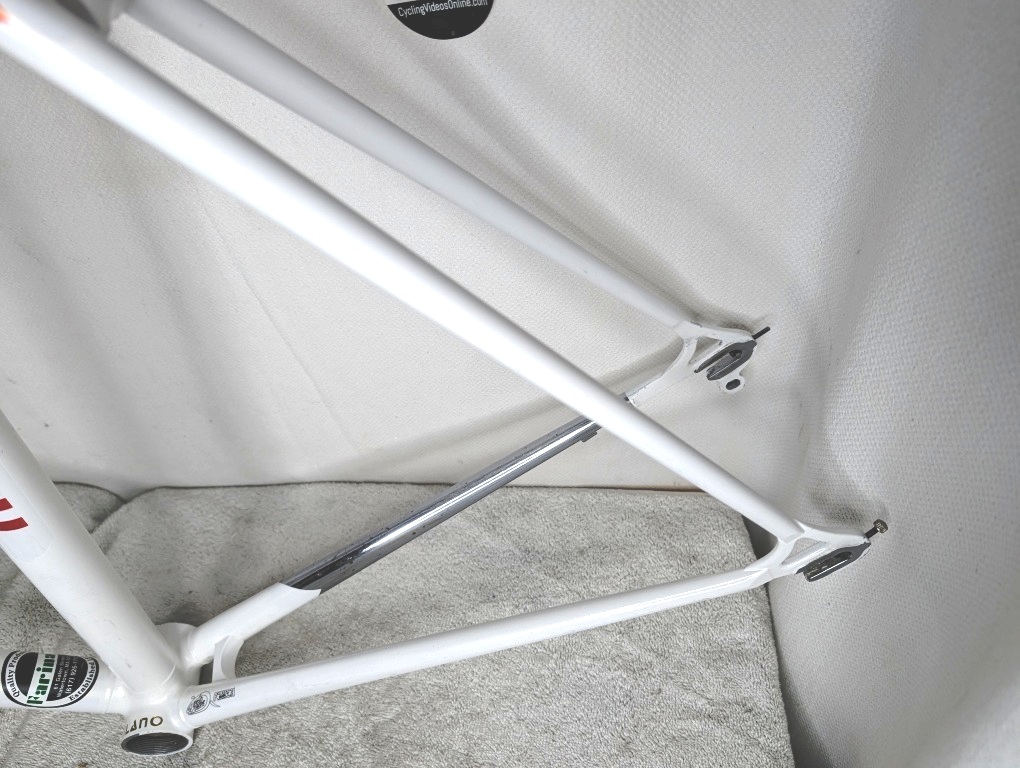

• Chainstays: 42cm (center-to-center)

📦What’s Included

• Milano 3V frame with internal lug construction

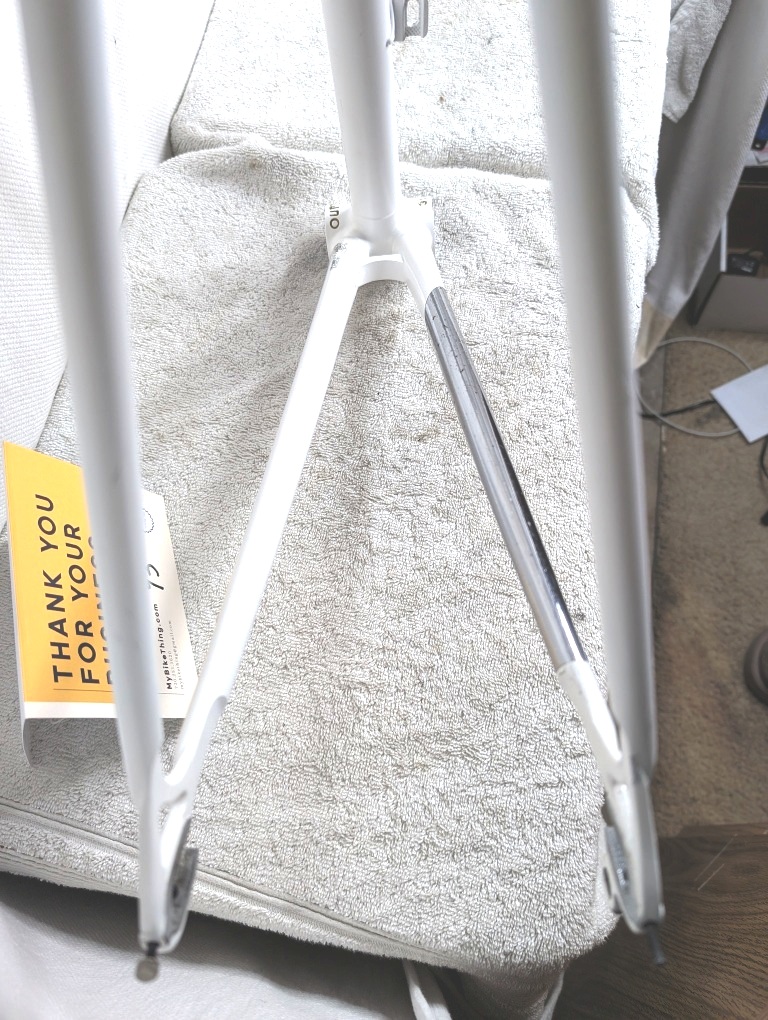

• Matching fork in excellent condition
• All threading perfect and ready to build

🚴The Ride
The 3V Volumetrica uses thinner walled tubes with larger diameters and Alberto’s own internally lugged method where frame tubes are cut to exact size, slippered over the lugs and silver-soldered into position. This construction delivers the stiffness and responsiveness that made frames like this the choice of champions. This isn’t just a bike; it’s a ride that will teleport you into the golden years of cycling innovation.

🔧Workshop Wisdom

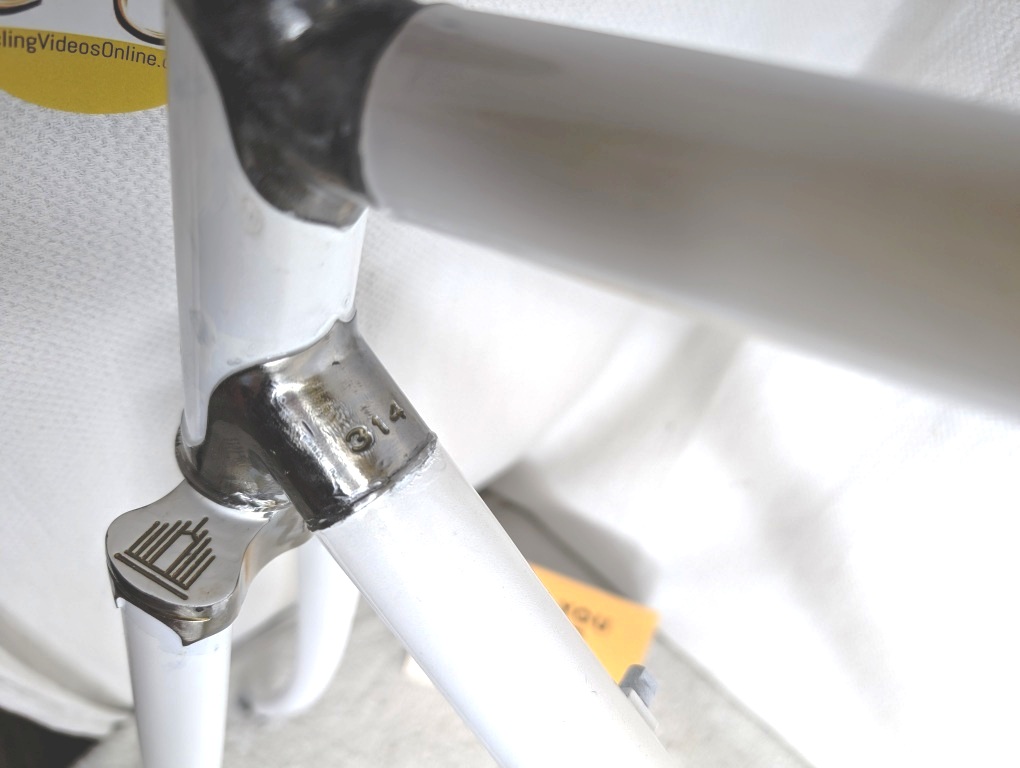

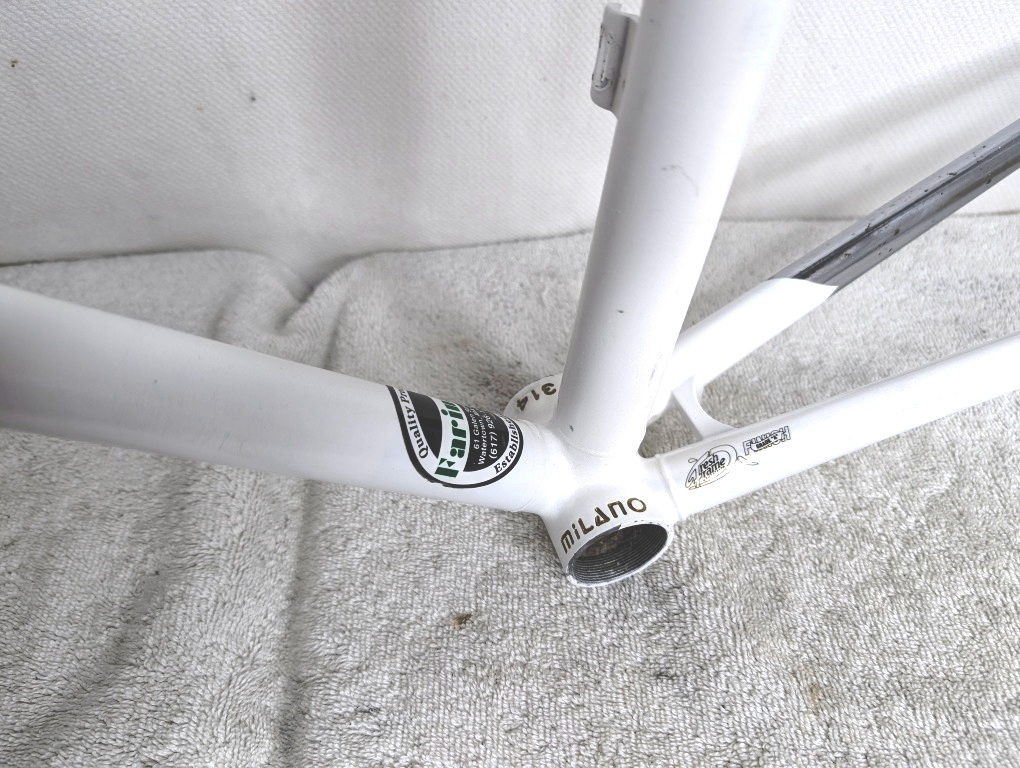

At the seat tube cluster and bottom bracket, you can see the seamless junctions where larger diameter tubes slip over the reinforced sections – Alberto’s revolutionary internal lug system that started the oversized tube revolution.

Before You Buy – A Note from Paul
Every frame I sell has been personally inspected and honestly described, but I want you to be 100% confident in your decision. Please take a moment to watch the detailed video included with this listing. Due to the personal nature of frame fit and the cost of shipping, I cannot accept returns. That’s why I encourage you to reach out to me directly with any questions, whether they’re about dimensions, condition, or build suggestions. I’m Paul – not a chatbot, not a sales team, just a fellow cyclist who wants to make sure this frame finds the right home. Let’s talk about this frame and make sure it’s perfect for you before you buy.

🔧What do I need to build this frame? (Please contact me if you need anything here)

• Headset: 1″ threaded

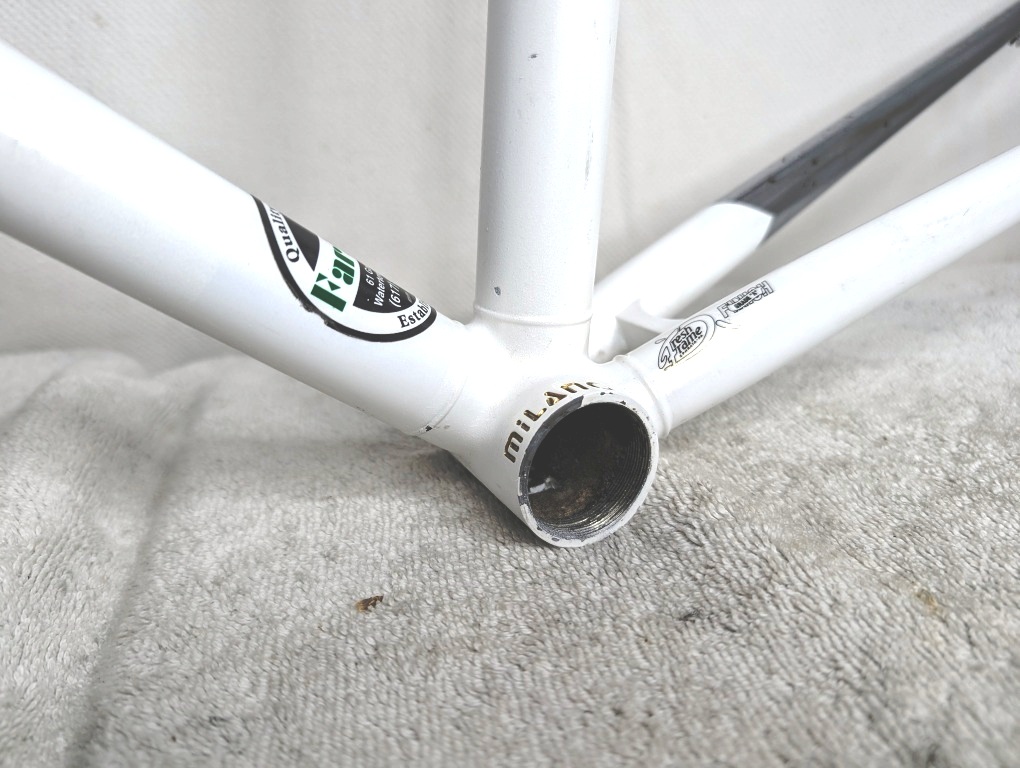

• Bottom Bracket: Italian threading, 68mm shell
• Seatpost: 27.2mm diameter
• Front Derailleur: Braze-on
• Brakes: Caliper brake
• Stem: Quill style
• Rear spacing: 130mm
• Front spacing: 100mm
• 700c wheels with classic racing clearances

📋Other Frame Details

• Material: Oversized chromium-molybdenum steel with hybrid lug construction
• Weight: Frame 1830g (4lbs), Fork 635g (1.4lbs)

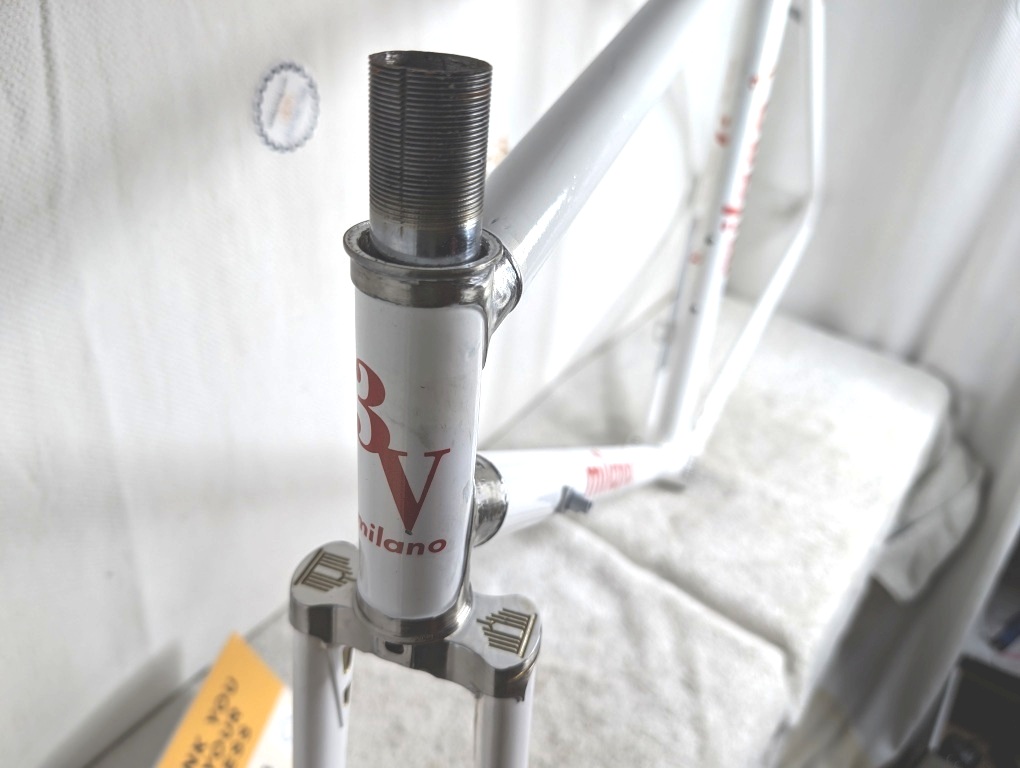

• Hand-painted pearl white finish with chrome head lugs
• Revolutionary internal/external lug combination
• Italian threading throughout
• Late 1980s/early 1990s Alberto Masi innovation

Is This Your Bike Thing?
If you’ve been searching for a piece of cycling history that changed frame building forever, this Milano 3V represents Alberto Masi’s greatest innovation in a beautifully restored package. Ready to own the frame that started the oversized tube revolution?
