Orbea Onix Frame & Fork | 60cm Large | Carbon Fiber | Aero Road Race

Description

⭐Condition

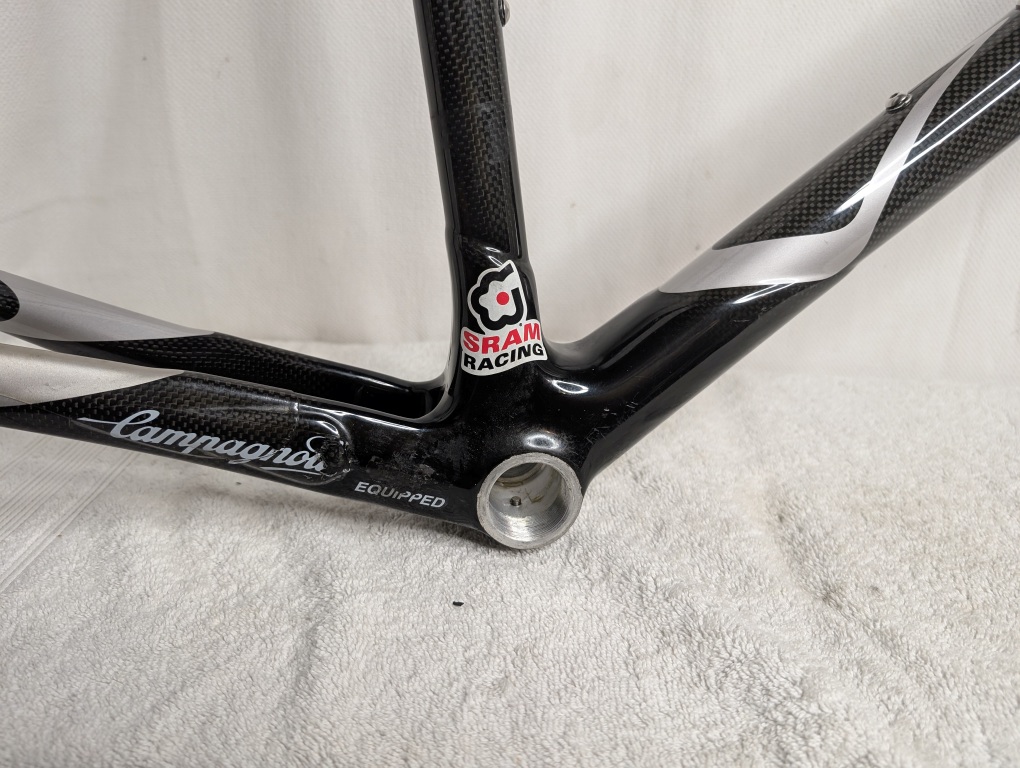

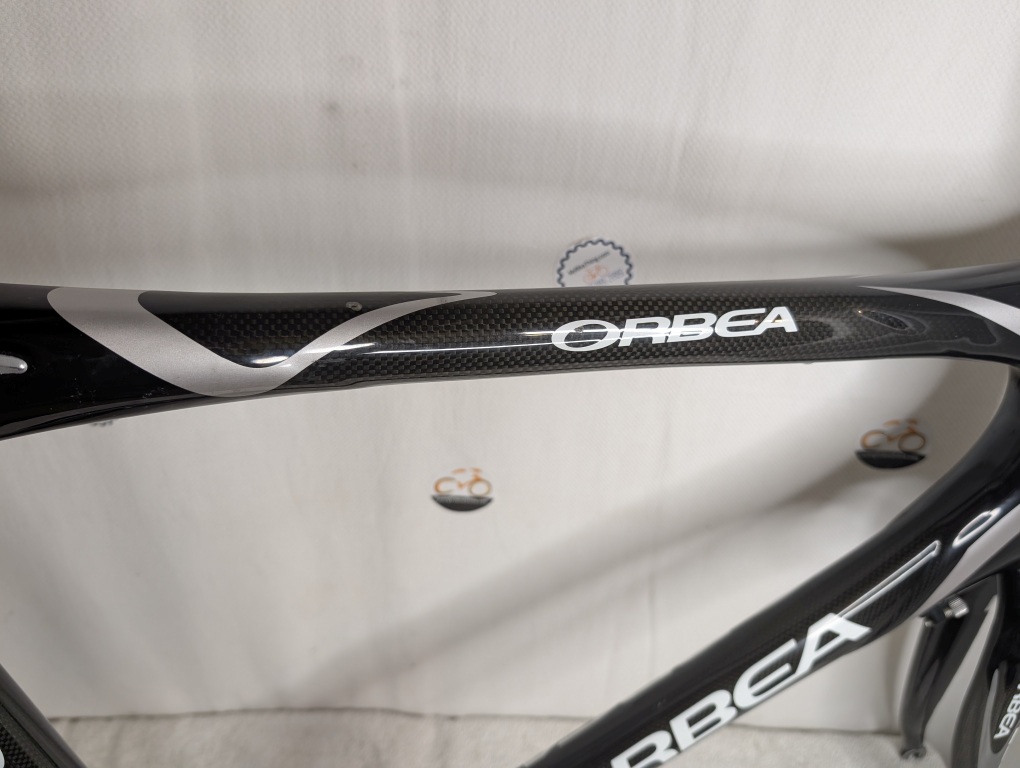

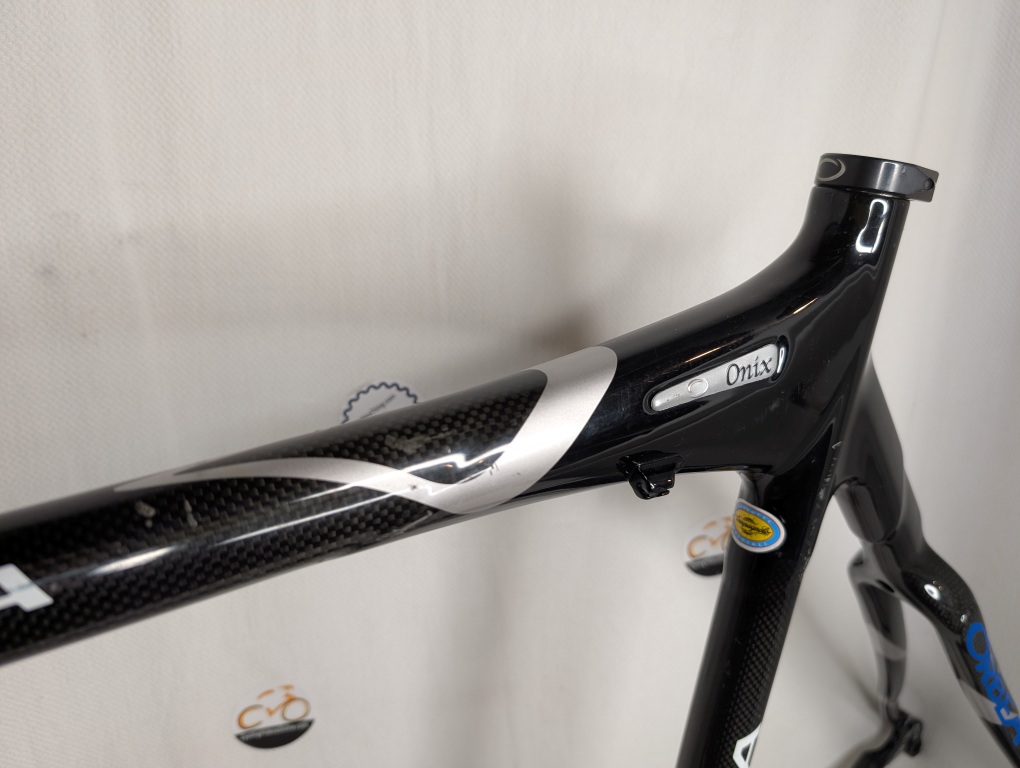

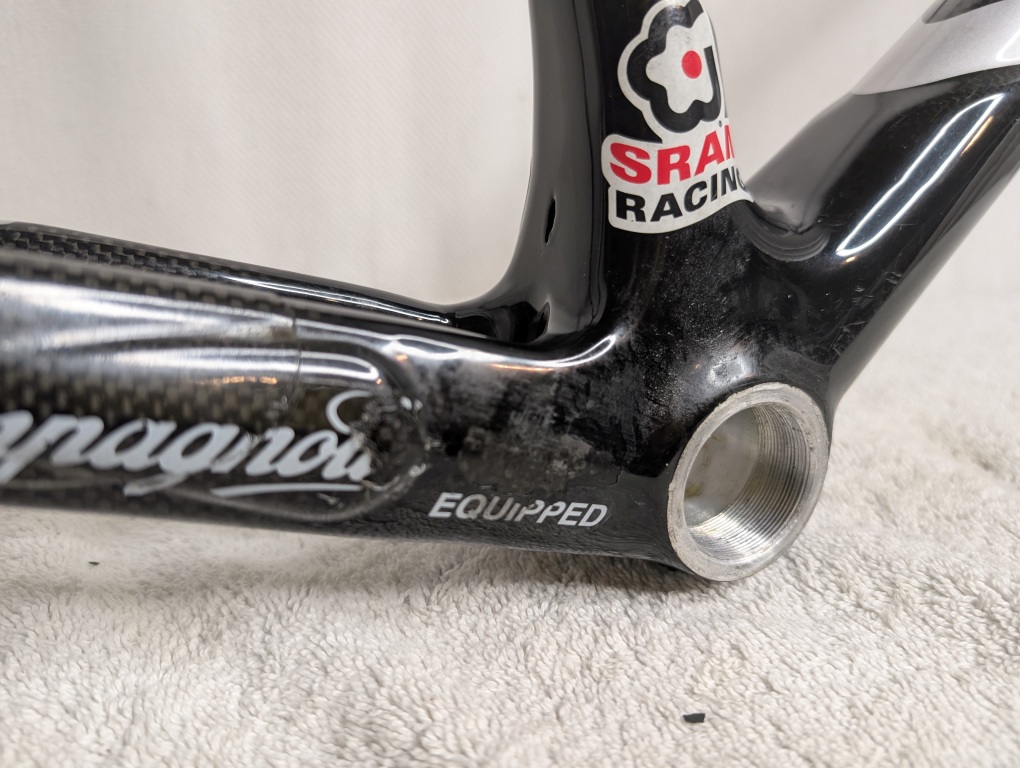

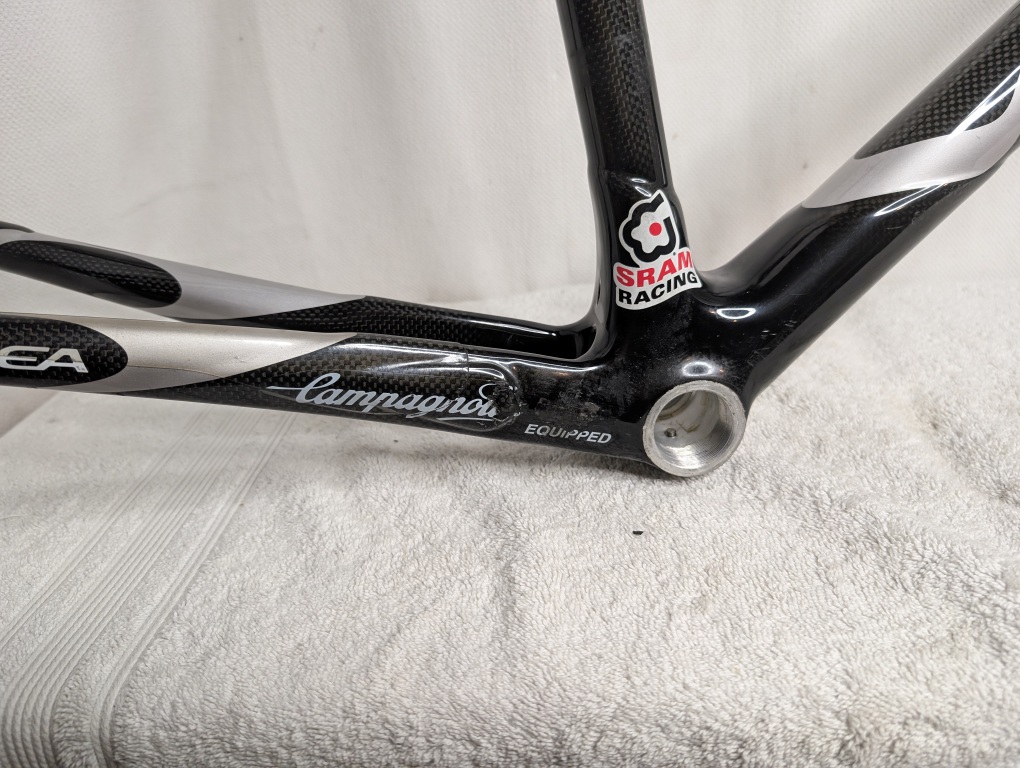

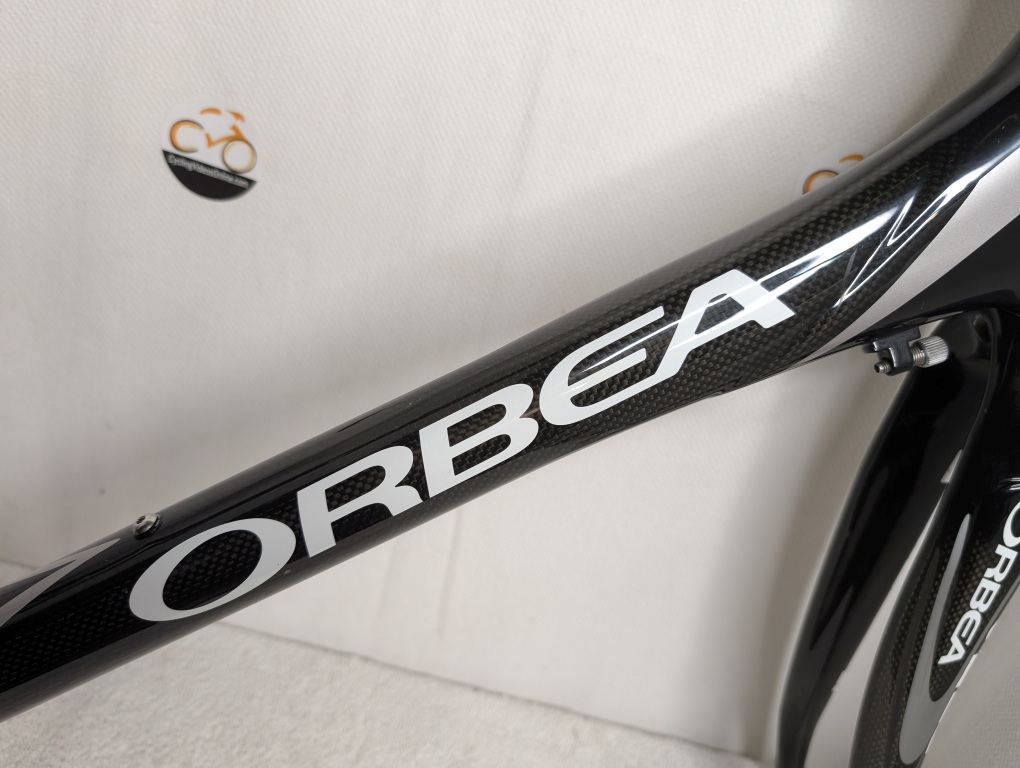

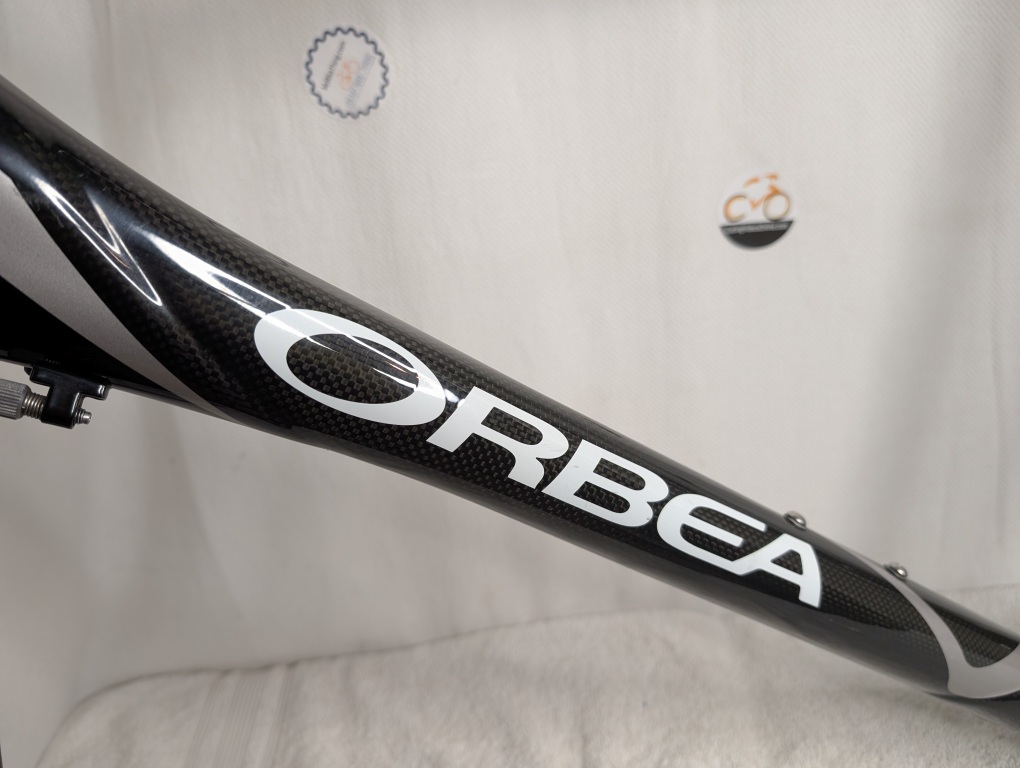

Very good condition with excellent labels and decals throughout. Light chip by bottom bracket on chainstay and very light scuffs and chips on seat tube and top tube. No structural damage or deep scratches. The carbon finish maintains its gloss and the frame shows typical careful use rather than hard racing wear.

📏Will this fit me?
Frame Size: 60cm – Large

• Top Tube: 59cm (center-to-center)
• Seat Tube: 62cm (top-to-center)
• Down Tube: 64.5cm (center-to-center)
• Chainstays: 41cm (center-to-center)

📦What’s Included

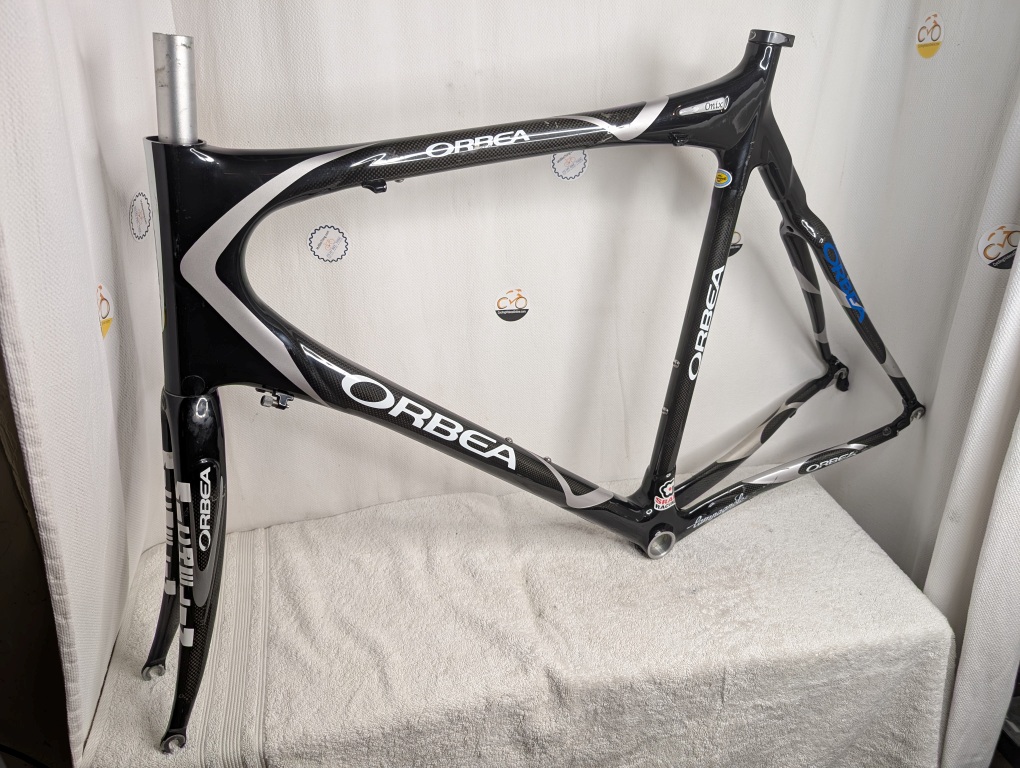

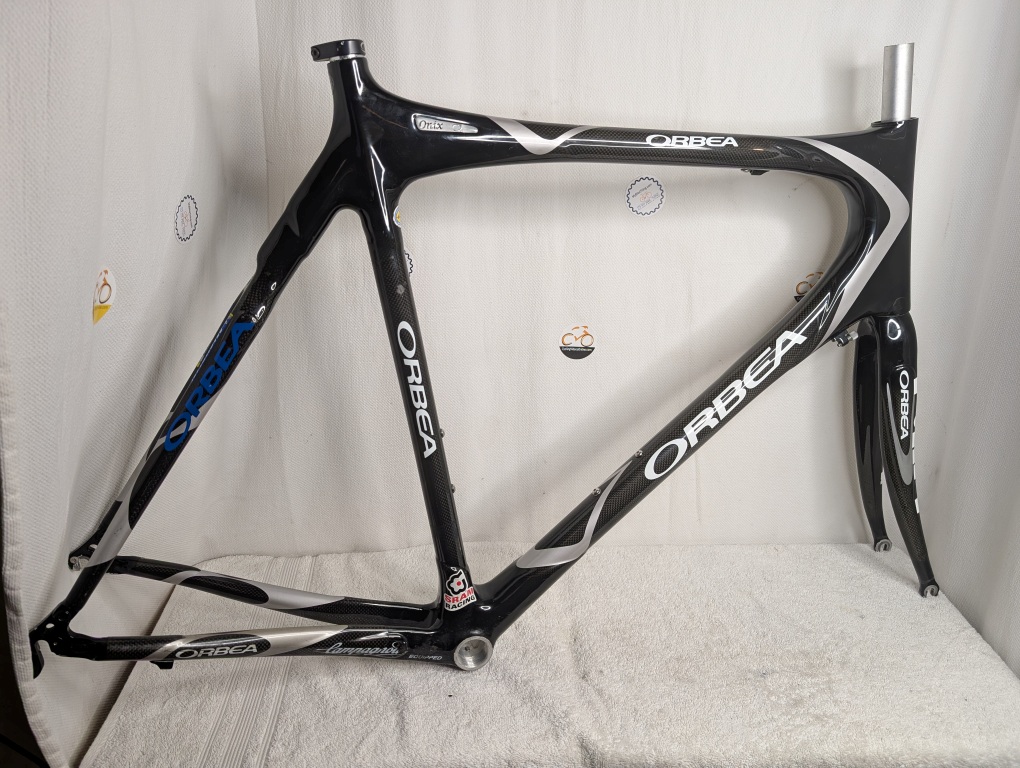

• Orbea Onix carbon frame

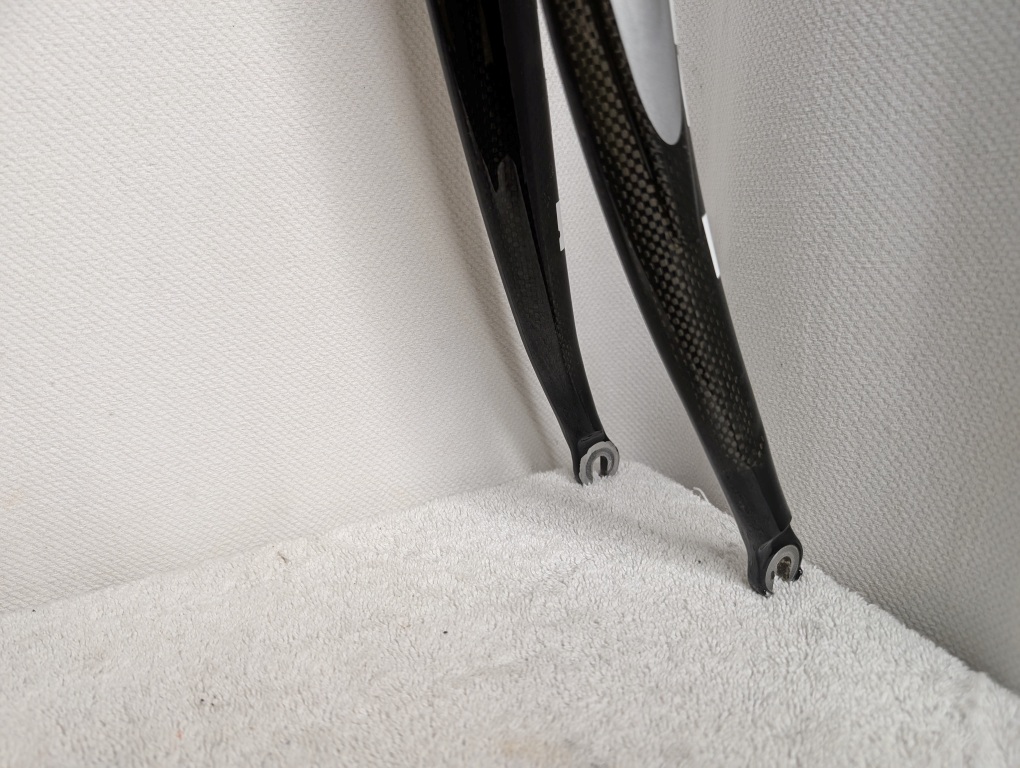

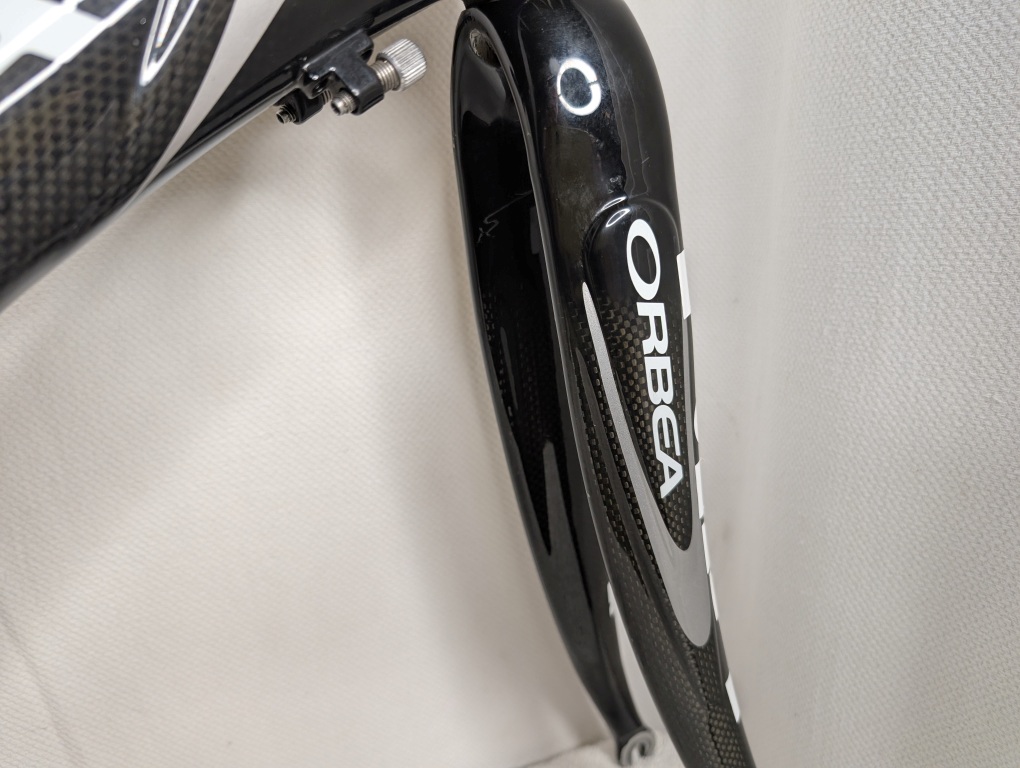

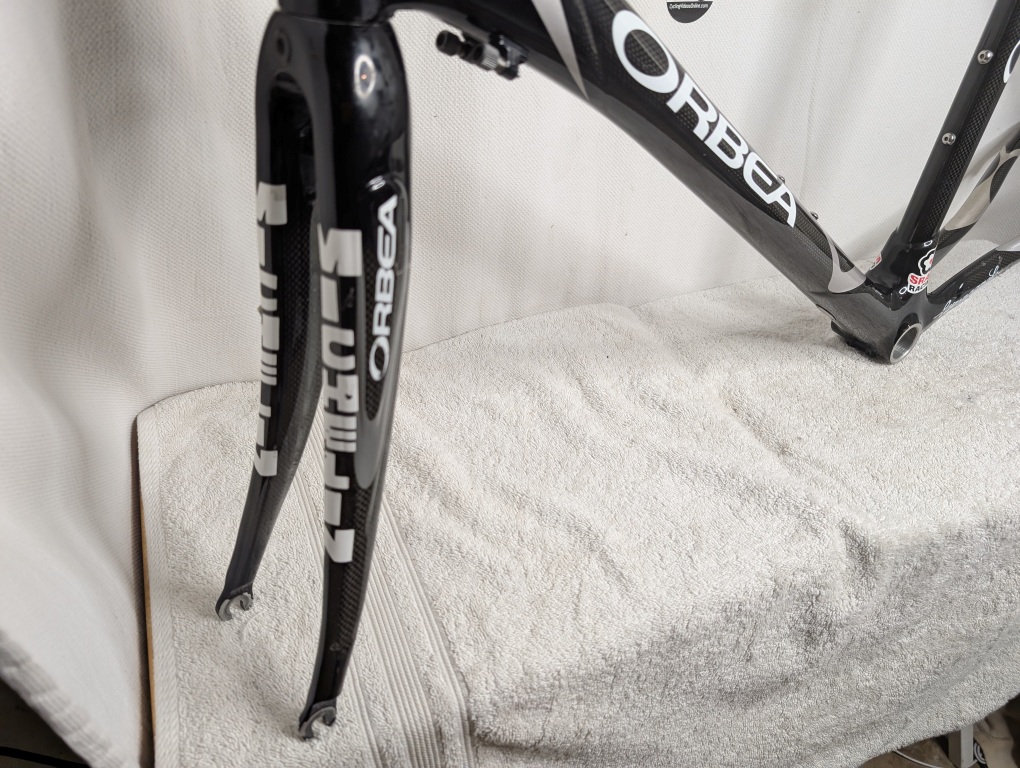

• Carbon fork with aluminum steerer
• Seat clamp, water bottle screws, rear derailleur hanger

🚴The Ride
Carbon fiber’s directional stiffness shines in the Onix – power transfer is immediate and precise, while the aerodynamic tube profiles reduce drag at speed. The wishbone seatstay design provides vertical compliance for comfort without sacrificing the lateral stiffness that makes this frame respond instantly to sprint efforts and climbing demands.

🔧Workshop Wisdom

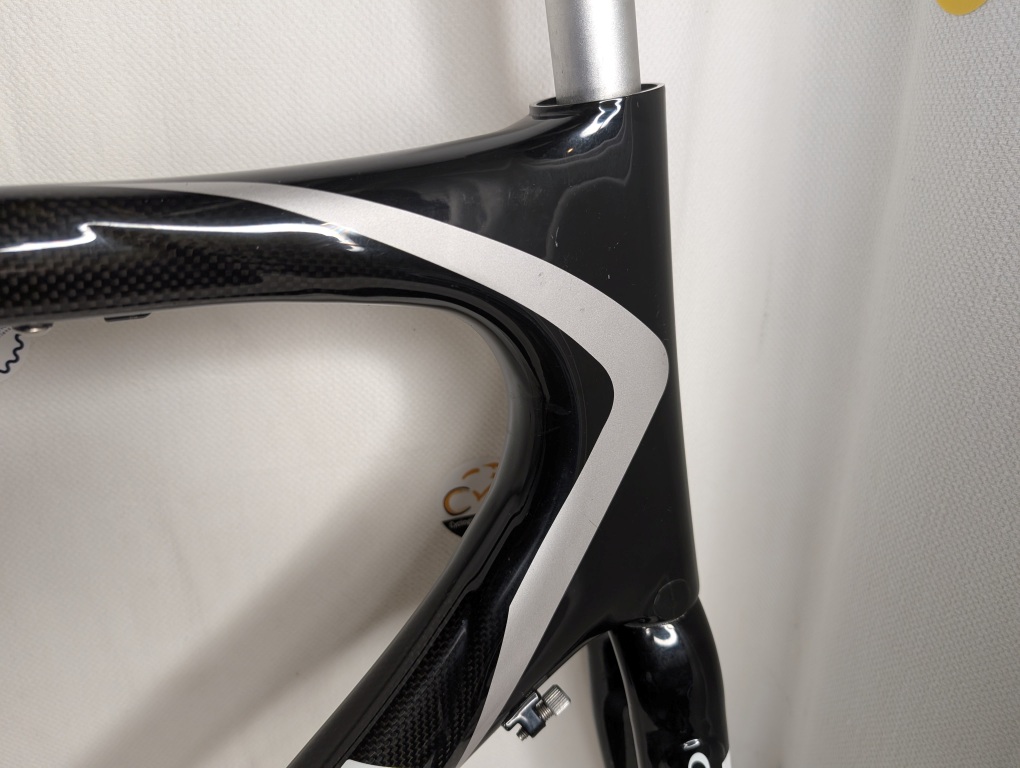

The integrated headset design keeps the front end aerodynamically clean while the flared chainstay junction improves stiffness exactly where power transfer matters most – at the bottom bracket.

Before You Buy – A Note from Paul
Every frame I sell has been personally inspected and honestly described, but I want you to be 100% confident in your decision. Please take a moment to watch the detailed video included with this listing. Due to the personal nature of frame fit and the cost of shipping, I cannot accept returns. That’s why I encourage you to reach out to me directly with any questions, whether they’re about dimensions, condition, or build suggestions. I’m Paul – not a chatbot, not a sales team, just a fellow cyclist who wants to make sure this frame finds the right home. Let’s talk about this frame and make sure it’s perfect for you before you buy.

🔧What do I need to build this frame? (Please contact me if you need anything here)

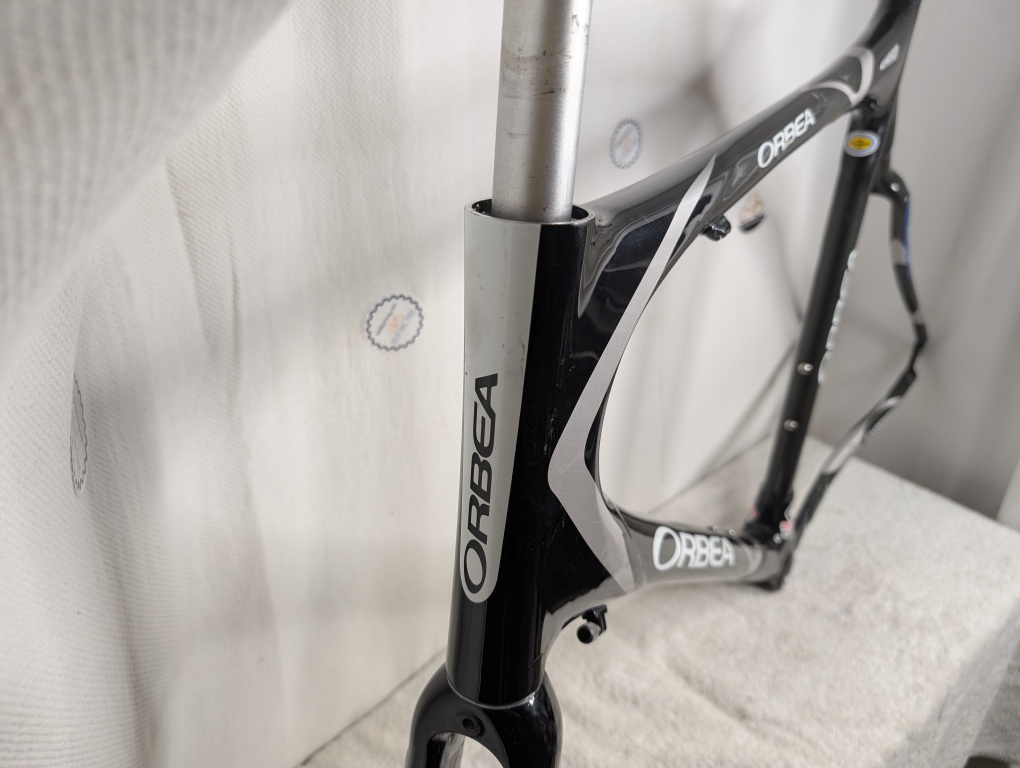

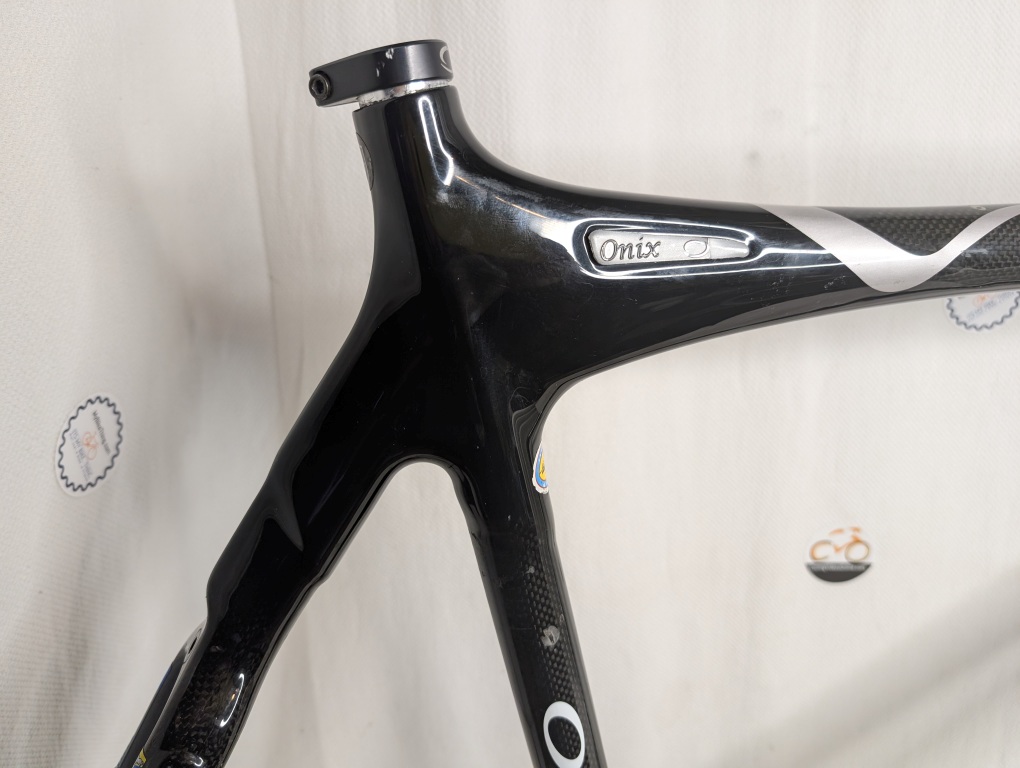

• Headset: Integrated, 36×45 degree bearing, 1-1/8″ threadless
• Bottom Bracket: 68mm English threaded

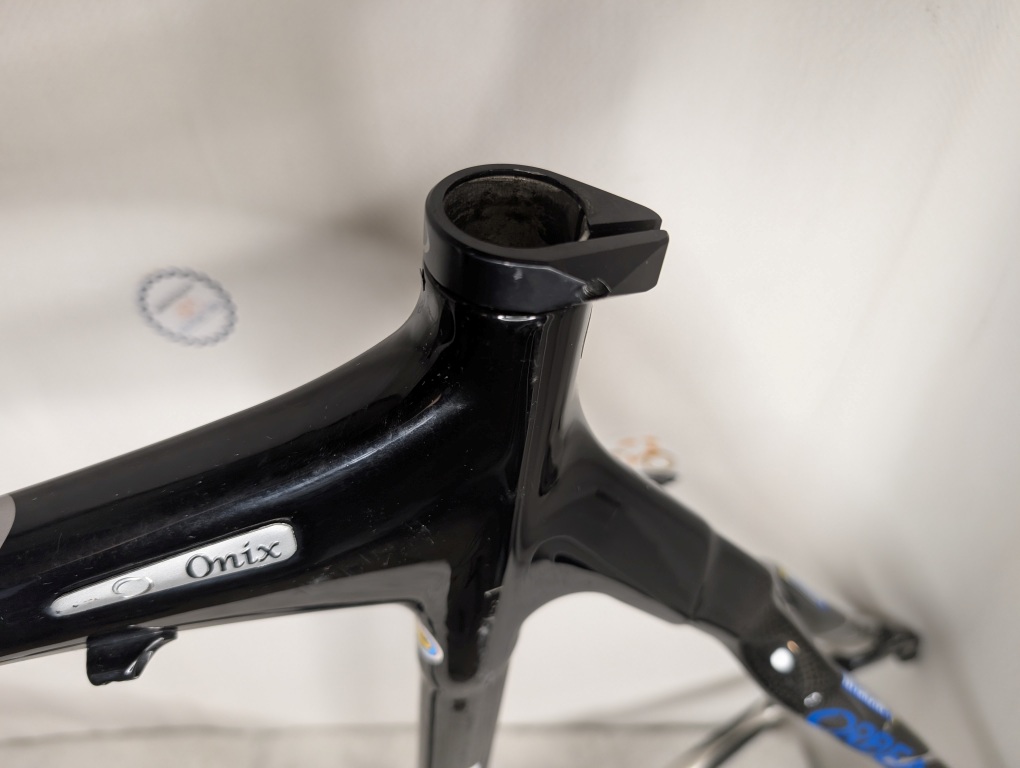

• Seatpost: 27.2mm
• Front Derailleur: 32mm clamp
• Brakes: Caliper rim brakes
• Stem: 1-1/8″ threadless
• Rear spacing: 130mm
• Wheel clearance: 700c wheels

📋Other Frame Details

• Material: Carbon fiber frame with carbon fork and aluminum steerer
• Aerodynamic tube shaping throughout

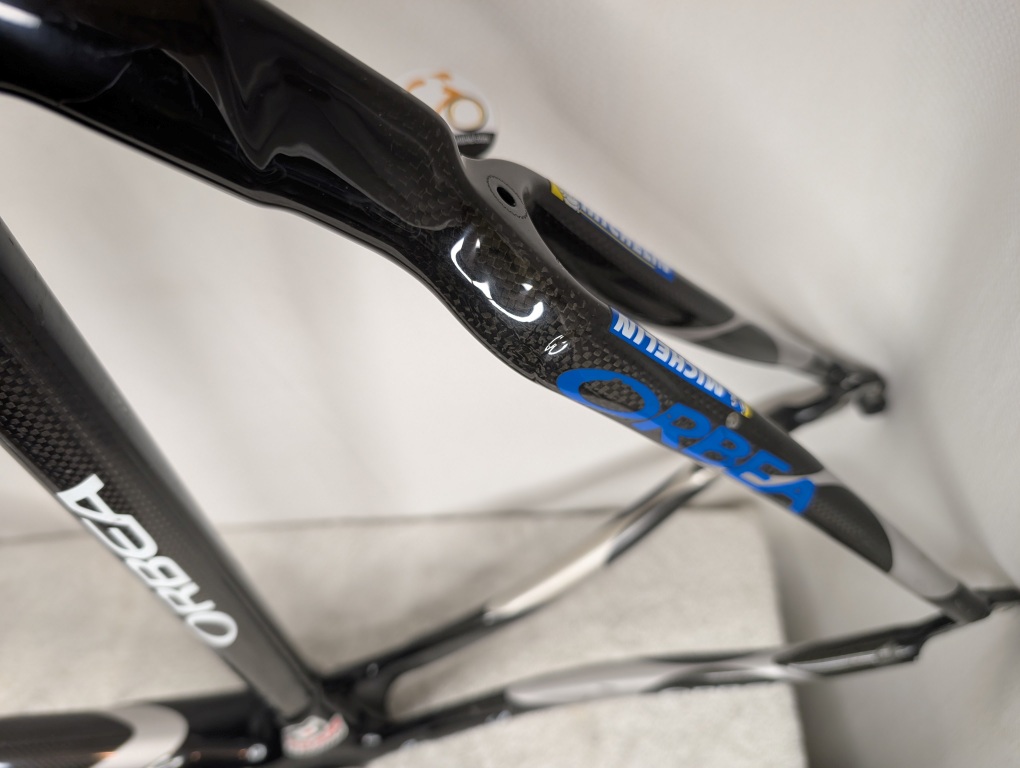

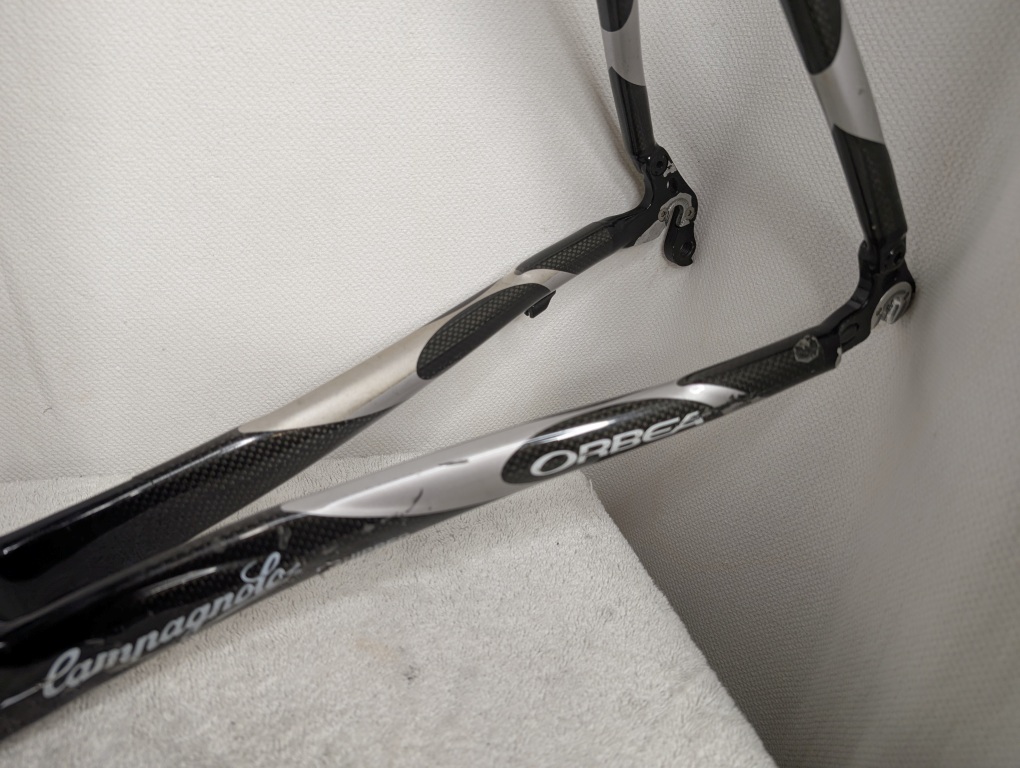

• Wishbone flared seatstays for compliance and stiffness

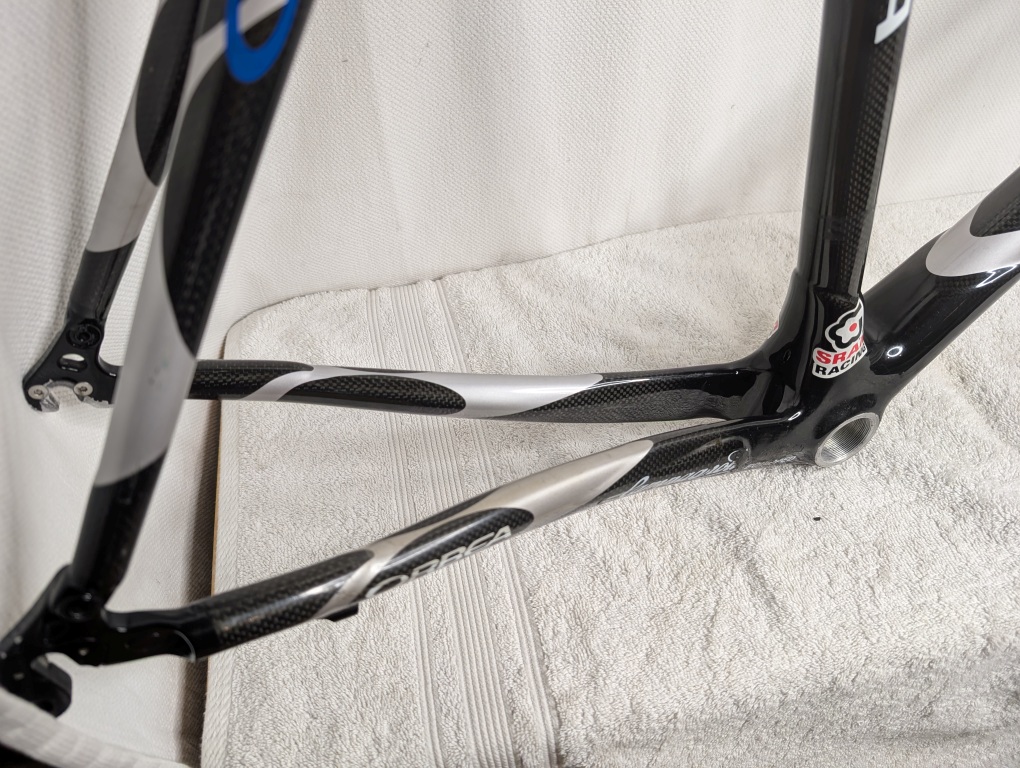

• Flared chainstays for bottom bracket stiffness
• Professional racing heritage with SRAM Racing provenance
• Frame weight: 1235g / 2.7lbs
• Fork weight: 587g / 1.5lbs
• Model year – unspecified, 2004-2006

Is This Your Bike Thing?
If you demand aerodynamic efficiency and carbon fiber performance, this Onix delivers race-proven technology in a frame designed to cut through wind and competition alike. Contact me to discuss build options and make this Spanish engineering masterpiece your competitive advantage.
